Aluminum-Copper Bimetal Strip

Drawing-led engineering Extrusion + machining Inspection planning

Aluminum-Copper Bimetal Strip from HIQ Aluminum, engineered with profile design, extrusion, CNC machining, finishing and inspection for reliable industrial production.

Custom requirement?

Review the profile and the finished component together.

Send the drawing, material, finish, critical tolerances and estimated quantities. We will confirm the engineering route before quotation.

Request a technical quote

Aluminum-Copper Bimetal Strip is engineered by HIQ Aluminum for busbars, battery systems, power connectors, heat exchangers and electrical transition joints. Send a drawing, STEP model or performance target and our team will align the aluminum alloy, profile geometry, machining allowances and surface finish with the way the component will be produced and assembled.

This aluminum-copper bimetal strip programme is built around one practical question: what does the finished component need to do in service? Rather than quoting a generic section, we review copper-to-aluminum ratio, strip width and thickness, joint quality, bend direction, plating and current-carrying requirements. That discussion helps identify the critical dimensions, avoid unnecessary secondary operations and set a manufacturing route that can be repeated across the project quantity.

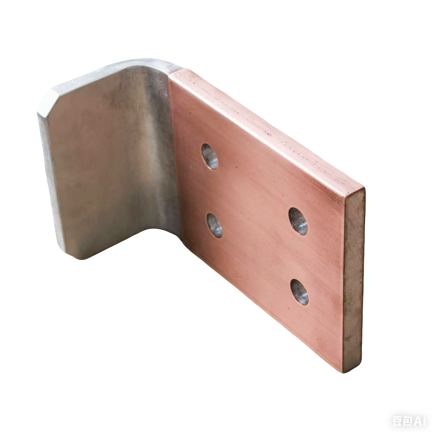

aluminum-copper bimetal strip supplied by HIQ Aluminum
Aluminum-Copper Bimetal Strip — profile, machining and finish reviewed as one production system.

Aluminum-Copper Bimetal Strip: configuration and specification

Component familyAluminum-Copper Bimetal
Typical alloys6000-series aluminum alloys selected for strength, formability, finish and application conditions
ProfileStandard or project-specific section; drawing review determines the final geometry
Secondary operationsCutting, CNC machining, drilling, tapping, bending or assembly preparation where required
Finish optionsMill finish, anodizing or powder coating, subject to part geometry and inspection requirements
Tolerance and order quantityConfirmed from the drawing, critical features and production plan
Quality documentationInspection plan and material or dimensional records agreed during quotation

What the finished component must get right

The bimetal strip overview emphasizes the conductive interface, layer placement and downstream cutting or forming process.

  • The structure combines aluminum’s lower mass with copper’s electrical and thermal performance
  • A metallurgical transition can reduce reliance on mechanical fastening at dissimilar joints
  • Clad strip formats support stamping and forming processes
  • Material placement can be optimized around current and thermal requirements

Project considerations for aluminum-copper bimetal strip

The electrical or thermal duty of aluminum-copper bimetal strip determines how material, joint preparation and surface treatment should be selected. The drawing should make the current path and the critical contact faces explicit.

  • Current, voltage and allowable temperature rise
  • Joint preparation, plating and contact-surface requirements
  • Bend direction, bend radius and forming sequence
  • Insulation clearance, support and installation position
  • Edge quality, burr control and inspection of the joint

These points are not a substitute for the approved drawing, but they show the questions that should be resolved before tooling, quotation and inspection are finalized. Where the design is already in production, sharing the current specification, known quality issues and target improvements usually gives the fastest technical review.

How HIQ manufactures aluminum-copper bimetal strip

Production planning connects material preparation, controlled bonding, rolling or forming, cutting and optional machining or surface treatment. The route is agreed only after the profile, material condition, critical features and finish have been reviewed together. That front-end work reduces the risk of a technically acceptable extrusion that later fails at machining, assembly or installation.

  1. Drawing and application reviewWe clarify load, fit, thermal or sealing requirements, annual volume and the features that must remain consistent in production.
  2. DFM and tooling routeThe team checks wall sections, extrusion direction, machining access and whether a new die or an existing profile is the better commercial choice.
  3. Extrusion and preparationBillet, extrusion and cooling controls are organized around the selected alloy and profile, followed by straightening and cut planning.
  4. Machining and finishingCritical interfaces are prepared by CNC operations, then anodized or coated where the application requires protection and appearance.
  5. Inspection and packingDimensional checks, surface review and packaging are planned around the customer’s receiving and assembly process.

Applications for aluminum-copper bimetal strip

The most common applications include power busbars and battery interconnects, electrical transition joints, thermal and electrical conductors, connectors and fabricated conductive parts. We use the operating environment to narrow the material and finish options, and the assembly method to define which dimensions require inspection.

For buyers comparing suppliers, the useful comparison is not only price per kilogram. It is the cost of a component that arrives with the right section, the right machined interfaces, a repeatable finish and a route for handling engineering changes. Those factors shape the total cost of the aluminum-copper bimetal strip programme.

Quality control for aluminum-copper bimetal strip

Inspection starts with the features that control fit and function. For this product family, the plan can cover bond continuity, dimensional tolerance, edge condition, surface quality and handling protection. Exact checks and sampling are confirmed in the quotation package so that both teams work to the same acceptance criteria.

When the project warrants it, the team can review CMM inspection, surface-condition checks, thread inspection, fit trials and material documentation. Final requirements should be stated on the purchase drawing or in the approved inspection plan.

Aluminum-Copper Bimetal Strip FAQs

Can HIQ customize aluminum-copper bimetal strip to our drawing?

Yes. Custom work can include profile development, alloy selection, machining, finishing, assembly preparation and packaging. The drawing and target volume help us identify the most suitable route and tooling investment.

What information should we include in a quotation request?

Provide a 2D drawing or 3D model, material and finish requirements, critical tolerances, annual and first-order quantities, inspection expectations and the destination. Photos of the current component are useful when the application is already in production.

Can you work from an existing aluminum profile?

Often, yes. We can review the section and the finished-part requirements to determine whether a stock or existing die is suitable. If not, we will explain where a new profile is likely to reduce total cost or improve function.

Aluminum-Copper Bimetal Strip: application and production review

This Aluminum-Copper Bimetal Strip should be specified around current capacity, joint design, space, corrosion exposure and the interface with the surrounding electrical assembly.

Surface condition, edge quality and hole or contact areas matter because they affect electrical contact and assembly. Where aluminum replaces part of a copper conductor, the connection method and material transition need to be reviewed as part of the design rather than added after the bar is produced.

Provide the conductor drawing, allowable temperature, connection method, plating or finish requirement, quantities and inspection expectations. HIQ will review cutting and machining needs around the finished busbar.

Aluminum-Copper Bimetal Strip selection checks

  • Current and temperature requirements
  • Joint and contact geometry
  • Edge, hole and surface condition
  • Packaging and electrical protection

Aluminum-Copper Bimetal Strip FAQs

Can the busbar be cut and machined to drawing?

The production route can include agreed cutting, drilling, machining and finishing around the electrical interface.

What affects the material choice?

Current capacity, weight, space, connection compatibility and environmental exposure should be reviewed together.

Continue to send the drawing to the HIQ engineering team or review the wider aluminum profile product range.

Aluminum-copper bimetal strip selection

An aluminum-copper bimetal strip creates a controlled transition between lightweight aluminum conductors and copper connection points. First, define the current, voltage drop, joint temperature and available contact area because these values determine the strip section and bond length.

Next, confirm copper-to-aluminum thickness, strip width and bend direction. Also review plating, bolt torque and galvanic isolation because the transition joint must remain stable through thermal cycling and field assembly.

Finally, agree on bond inspection, dimensional checks and packing protection. Consequently, samples and volume parts can be evaluated against the same electrical, mechanical and visual acceptance criteria.

Information to confirm before quotation

  • Current, voltage drop and operating temperature
  • Copper-to-aluminum ratio and bond length
  • Strip width, thickness and bend direction
  • Plating, joint inspection and packing protection

For related specifications, review Compare aluminum-copper bimetal products. For broader industry context, consult Copper Development Association busbar guidance.

Next step

Review the wider aluminum-copper bimetal range, browse the aluminum profile product hub, or send your drawing to the HIQ engineering team. For material terminology and standards, the Aluminum Association and ASTM International publish useful reference material.
