Electronic Enclosure for Sensitive Electronics

Drawing-led engineering Extrusion + machining Inspection planning

Electronic Enclosure for Sensitive Electronics from HIQ Aluminum, engineered with profile design, extrusion, CNC machining, finishing and inspection for reliable industrial production.

Custom requirement?

Review the profile and the finished component together.

Send the drawing, material, finish, critical tolerances and estimated quantities. We will confirm the engineering route before quotation.

Request a technical quote

Electronic Enclosure for Sensitive Electronics is engineered by HIQ Aluminum for industrial controls, edge computing, AI hardware, power supplies, sensors and communication modules. Send a drawing, STEP model or performance target and our team will align the aluminum alloy, profile geometry, machining allowances and surface finish with the way the component will be produced and assembled.

This electronic enclosure programme is built around one practical question: what does the finished component need to do in service? Rather than quoting a generic section, we review internal board clearance, wall thickness, heat-dissipation surfaces, connector access, sealing strategy and end-cap interfaces. That discussion helps identify the critical dimensions, avoid unnecessary secondary operations and set a manufacturing route that can be repeated across the project quantity.

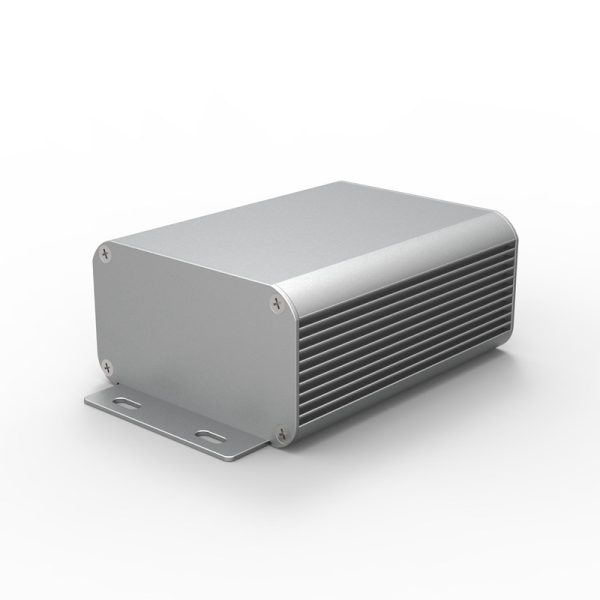

electronic enclosure supplied by HIQ Aluminum
Electronic Enclosure for Sensitive Electronics — profile, machining and finish reviewed as one production system.

Electronic Enclosure for Sensitive Electronics: configuration and specification

Component familyElectronic Aluminum Housing
Typical alloys6000-series aluminum alloys selected for strength, formability, finish and application conditions
ProfileStandard or project-specific section; drawing review determines the final geometry
Secondary operationsCutting, CNC machining, drilling, tapping, bending or assembly preparation where required
Finish optionsMill finish, anodizing or powder coating, subject to part geometry and inspection requirements
Tolerance and order quantityConfirmed from the drawing, critical features and production plan
Quality documentationInspection plan and material or dimensional records agreed during quotation

What the finished component must get right

This enclosure configuration is organized around protecting sensitive boards while preserving access to thermal, electrical and service interfaces.

  • Aluminum combines enclosure strength with useful thermal conductivity
  • Extruded bodies can be cut to different lengths without changing the cross-section
  • Machined openings and tapped features support connectors, boards and mounting hardware
  • Anodized or powder-coated surfaces improve durability and product presentation

Project considerations for electronic enclosure

Electronic housings are defined by the board, the connector layout and the environment around the finished device. The extrusion must provide enough structure and thermal contact while leaving a practical path for assembly and service.

  • PCB outline, component height and internal clearance
  • Connector, display and access-panel locations
  • Thermal contact points and heatsink interface
  • End-cap, gasket, grounding and fastening strategy
  • Anodizing, masking and marking requirements

These points are not a substitute for the approved drawing, but they show the questions that should be resolved before tooling, quotation and inspection are finalized. Where the design is already in production, sharing the current specification, known quality issues and target improvements usually gives the fastest technical review.

How HIQ manufactures electronic enclosure

Production planning connects profile development, extrusion, precision cutting, CNC machining, tapping, anodizing or powder coating and assembly support. The route is agreed only after the profile, material condition, critical features and finish have been reviewed together. That front-end work reduces the risk of a technically acceptable extrusion that later fails at machining, assembly or installation.

  1. Drawing and application reviewWe clarify load, fit, thermal or sealing requirements, annual volume and the features that must remain consistent in production.
  2. DFM and tooling routeThe team checks wall sections, extrusion direction, machining access and whether a new die or an existing profile is the better commercial choice.
  3. Extrusion and preparationBillet, extrusion and cooling controls are organized around the selected alloy and profile, followed by straightening and cut planning.
  4. Machining and finishingCritical interfaces are prepared by CNC operations, then anodized or coated where the application requires protection and appearance.
  5. Inspection and packingDimensional checks, surface review and packaging are planned around the customer’s receiving and assembly process.

Applications for electronic enclosure

The most common applications include industrial control and edge-computing enclosures, power electronics and communication equipment, sensors, cameras and optical modules, ai accelerators and high-density electronic systems. We use the operating environment to narrow the material and finish options, and the assembly method to define which dimensions require inspection.

For buyers comparing suppliers, the useful comparison is not only price per kilogram. It is the cost of a component that arrives with the right section, the right machined interfaces, a repeatable finish and a route for handling engineering changes. Those factors shape the total cost of the electronic enclosure programme.

Quality control for electronic enclosure

Inspection starts with the features that control fit and function. For this product family, the plan can cover internal dimensions, flatness, hole position, thread condition, finish uniformity and fit between the extrusion and end plates. Exact checks and sampling are confirmed in the quotation package so that both teams work to the same acceptance criteria.

When the project warrants it, the team can review CMM inspection, surface-condition checks, thread inspection, fit trials and material documentation. Final requirements should be stated on the purchase drawing or in the approved inspection plan.

Electronic Enclosure for Sensitive Electronics FAQs

Can HIQ customize electronic enclosure to our drawing?

Yes. Custom work can include profile development, alloy selection, machining, finishing, assembly preparation and packaging. The drawing and target volume help us identify the most suitable route and tooling investment.

What information should we include in a quotation request?

Provide a 2D drawing or 3D model, material and finish requirements, critical tolerances, annual and first-order quantities, inspection expectations and the destination. Photos of the current component are useful when the application is already in production.

Can you work from an existing aluminum profile?

Often, yes. We can review the section and the finished-part requirements to determine whether a stock or existing die is suitable. If not, we will explain where a new profile is likely to reduce total cost or improve function.

Variant-specific engineering

Electronic enclosure for sensitive electronics: protection interfaces

This variant focuses on sensitive boards where grounding, sealing and controlled openings matter more than a decorative exterior. The enclosure should be reviewed around the EMC strategy, cable entry, service access and the environment around the installed device.

Gasket compression, paint-free contact zones and connector tolerances must remain compatible after anodizing or powder coating. If the enclosure uses multiple end plates, the drawing should identify the order of assembly and the surfaces that establish electrical continuity.

The thermal requirement should be stated separately from the ingress requirement. A contact pad may need flatness, a sealing groove may need surface integrity, and a service opening may need a replaceable gasket. Those features should not compete for the same machined surface.

Inputs to confirm for this variant

  • EMC grounding and paint-free contact surfaces
  • Gasket groove, connector gland and cable entry
  • Board clearance around sensitive components
  • Service sequence and replaceable sealing parts
  • Environmental exposure and finish compatibility

Next step

Review the wider electronic aluminum housing range, browse the aluminum profile product hub, or send your drawing to the HIQ engineering team. For material terminology and standards, the Aluminum Association and ASTM International publish useful reference material.
