Water-Cooled Aluminum Heat Sink is engineered by HIQ Aluminum for IGBT modules, optical transceivers, power electronics, high-density computing and motor inverters. Send a drawing, STEP model or performance target and our team will align the aluminum alloy, profile geometry, machining allowances and surface finish with the way the component will be produced and assembled.

This water-cooled aluminum heat sink programme is built around one practical question: what does the finished component need to do in service? Rather than quoting a generic section, we review coolant flow path, pressure drop, thermal interface, channel geometry, sealing method, port location and service access. That discussion helps identify the critical dimensions, avoid unnecessary secondary operations and set a manufacturing route that can be repeated across the project quantity.

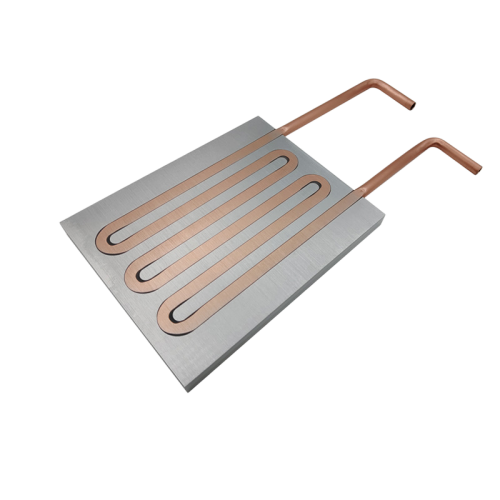

water-cooled aluminum heat sink supplied by HIQ Aluminum
Water-Cooled Aluminum Heat Sink — profile, machining and finish reviewed as one production system.

Water-Cooled Aluminum Heat Sink: configuration and specification

Component familyLiquid-Cooled Heat Sink
Typical alloys6000-series aluminum alloys selected for strength, formability, finish and application conditions
ProfileStandard or project-specific section; drawing review determines the final geometry
Secondary operationsCutting, CNC machining, drilling, tapping, bending or assembly preparation where required
Finish optionsMill finish, anodizing or powder coating, subject to part geometry and inspection requirements
Tolerance and order quantityConfirmed from the drawing, critical features and production plan
Quality documentationInspection plan and material or dimensional records agreed during quotation

What the finished component must get right

This design combines aluminum and copper where the thermal or electrical interface benefits from using more than one material.

  • Liquid coolant can remove heat from concentrated sources more effectively than air alone
  • Integrated channel geometry can reduce the number of separate thermal components
  • Machined mounting surfaces improve contact with heat-generating modules
  • Leak testing and cleaning can be planned as part of the production process

Project considerations for water-cooled aluminum heat sink

Thermal parts should be specified against the heat source and installation, not by outline dimensions alone. Airflow or coolant conditions, contact pressure and the mounting footprint all affect the useful performance of the component.

  • Heat load, allowable temperature rise and ambient or coolant conditions
  • Contact surface, flatness, finish and mounting pressure
  • Fin or channel geometry and available installation space
  • Port, fitting or airflow access for service and assembly
  • Inspection method for the features that control thermal contact

These points are not a substitute for the approved drawing, but they show the questions that should be resolved before tooling, quotation and inspection are finalized. Where the design is already in production, sharing the current specification, known quality issues and target improvements usually gives the fastest technical review.

How HIQ manufactures water-cooled aluminum heat sink

Production planning connects thermal concept review, profile or plate development, CNC machining, friction welding or brazing, cleaning and leak testing. The route is agreed only after the profile, material condition, critical features and finish have been reviewed together. That front-end work reduces the risk of a technically acceptable extrusion that later fails at machining, assembly or installation.

  1. Drawing and application reviewWe clarify load, fit, thermal or sealing requirements, annual volume and the features that must remain consistent in production.
  2. DFM and tooling routeThe team checks wall sections, extrusion direction, machining access and whether a new die or an existing profile is the better commercial choice.
  3. Extrusion and preparationBillet, extrusion and cooling controls are organized around the selected alloy and profile, followed by straightening and cut planning.
  4. Machining and finishingCritical interfaces are prepared by CNC operations, then anodized or coated where the application requires protection and appearance.
  5. Inspection and packingDimensional checks, surface review and packaging are planned around the customer’s receiving and assembly process.

Applications for water-cooled aluminum heat sink

The most common applications include igbt and power semiconductor cold plates, water-cooled motor housings, optical module and high-speed communication cooling, inverters, rectifiers and energy-conversion systems. We use the operating environment to narrow the material and finish options, and the assembly method to define which dimensions require inspection.

For buyers comparing suppliers, the useful comparison is not only price per kilogram. It is the cost of a component that arrives with the right section, the right machined interfaces, a repeatable finish and a route for handling engineering changes. Those factors shape the total cost of the water-cooled aluminum heat sink programme.

Quality control for water-cooled aluminum heat sink

Inspection starts with the features that control fit and function. For this product family, the plan can cover channel integrity, flatness, pressure and leak performance, port position, thread quality and coolant compatibility. Exact checks and sampling are confirmed in the quotation package so that both teams work to the same acceptance criteria.
