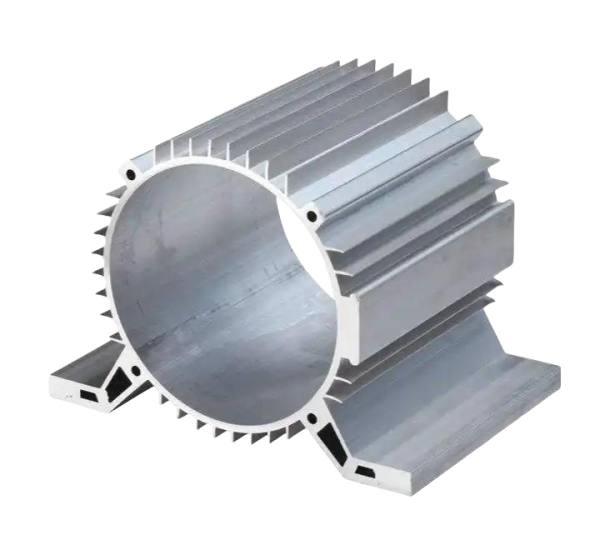

Custom Aluminum Motor Housing Extrusion from HIQ Aluminum, engineered with profile design, extrusion, CNC machining, finishing and inspection for reliable industrial production.
Send the drawing, material, finish, critical tolerances and estimated quantities. We will confirm the engineering route before quotation.
Request a technical quoteCustom Aluminum Motor Housing Extrusion is engineered by HIQ Aluminum for electric motors, servo drives, gear motors, robotics and compact industrial machinery. Send a drawing, STEP model or performance target and our team will align the aluminum alloy, profile geometry, machining allowances and surface finish with the way the component will be produced and assembled.
This custom aluminum motor housing programme is built around one practical question: what does the finished component need to do in service? Rather than quoting a generic section, we review housing geometry, thermal path, mounting interfaces, wall thickness and the relationship between the extruded body and machined end features. That discussion helps identify the critical dimensions, avoid unnecessary secondary operations and set a manufacturing route that can be repeated across the project quantity.

Component familyAluminum Motor HousingTypical alloys6000-series aluminum alloys selected for strength, formability, finish and application conditionsProfileStandard or project-specific section; drawing review determines the final geometrySecondary operationsCutting, CNC machining, drilling, tapping, bending or assembly preparation where requiredFinish optionsMill finish, anodizing or powder coating, subject to part geometry and inspection requirementsTolerance and order quantityConfirmed from the drawing, critical features and production plan
| Quality documentation | Inspection plan and material or dimensional records agreed during quotation |
|---|
The custom route is intended for motors with unique diameters, cooling-fin layouts, mounting lugs or end-face requirements that are not covered by a preferred stock profile.
The custom aluminum motor housing requirement should connect the motor stack, end covers and installation points. A clear datum strategy helps keep concentricity, mounting position and thermal interfaces consistent from prototype to repeat production.
These points are not a substitute for the approved drawing, but they show the questions that should be resolved before tooling, quotation and inspection are finalized. Where the design is already in production, sharing the current specification, known quality issues and target improvements usually gives the fastest technical review.
Production planning connects die review, billet selection, extrusion, controlled cooling, straightening, cutting, CNC machining and surface finishing. The route is agreed only after the profile, material condition, critical features and finish have been reviewed together. That front-end work reduces the risk of a technically acceptable extrusion that later fails at machining, assembly or installation.
The most common applications include servo and stepper motor bodies, electric vehicle and traction motor assemblies, gear motor housings and industrial drive units, robotics, actuators and automation equipment. We use the operating environment to narrow the material and finish options, and the assembly method to define which dimensions require inspection.
For buyers comparing suppliers, the useful comparison is not only price per kilogram. It is the cost of a component that arrives with the right section, the right machined interfaces, a repeatable finish and a route for handling engineering changes. Those factors shape the total cost of the custom aluminum motor housing programme.
Inspection starts with the features that control fit and function. For this product family, the plan can cover critical dimensions, wall thickness, straightness, thread quality, surface condition and fit with adjacent motor components. Exact checks and sampling are confirmed in the quotation package so that both teams work to the same acceptance criteria.
When the project warrants it, the team can review CMM inspection, surface-condition checks, thread inspection, fit trials and material documentation. Final requirements should be stated on the purchase drawing or in the approved inspection plan.
Yes. Custom work can include profile development, alloy selection, machining, finishing, assembly preparation and packaging. The drawing and target volume help us identify the most suitable route and tooling investment.
Provide a 2D drawing or 3D model, material and finish requirements, critical tolerances, annual and first-order quantities, inspection expectations and the destination. Photos of the current component are useful when the application is already in production.
Often, yes. We can review the section and the finished-part requirements to determine whether a stock or existing die is suitable. If not, we will explain where a new profile is likely to reduce total cost or improve function.
This is the custom-profile route for a motor housing that needs a specific outer diameter, internal support geometry, cooling path or mounting shape. The profile is engineered after the motor, stator, bearing and end-plate requirements are understood.
A new die should be evaluated together with machining and assembly. Internal ledges can support a stator but may obstruct tool access; external fins can improve cooling but may interfere with a mounting bracket. The drawing review should make those compromises visible.
The commercial decision should include tooling, prototype validation, minimum production quantity and the cost of secondary operations. A custom section is justified when it removes machining, improves repeatability or creates a thermal or packaging advantage that a standard profile cannot provide.
Review the wider aluminum motor housing range, browse the aluminum profile product hub, or send your drawing to the HIQ engineering team. For material terminology and standards, the Aluminum Association and ASTM International publish useful reference material.
