Aluminum Motor Housing Profile for Automation

Drawing-led engineering Extrusion + machining Inspection planning

Aluminum Motor Housing Profile for Automation from HIQ Aluminum, engineered with profile design, extrusion, CNC machining, finishing and inspection for reliable industrial production.

Custom requirement?

Review the profile and the finished component together.

Send the drawing, material, finish, critical tolerances and estimated quantities. We will confirm the engineering route before quotation.

Request a technical quote

Aluminum Motor Housing Profile for Automation is engineered by HIQ Aluminum for electric motors, servo drives, gear motors, robotics and compact industrial machinery. Send a drawing, STEP model or performance target and our team will align the aluminum alloy, profile geometry, machining allowances and surface finish with the way the component will be produced and assembled.

This motor housing profile for automation programme is built around one practical question: what does the finished component need to do in service? Rather than quoting a generic section, we review housing geometry, thermal path, mounting interfaces, wall thickness and the relationship between the extruded body and machined end features. That discussion helps identify the critical dimensions, avoid unnecessary secondary operations and set a manufacturing route that can be repeated across the project quantity.

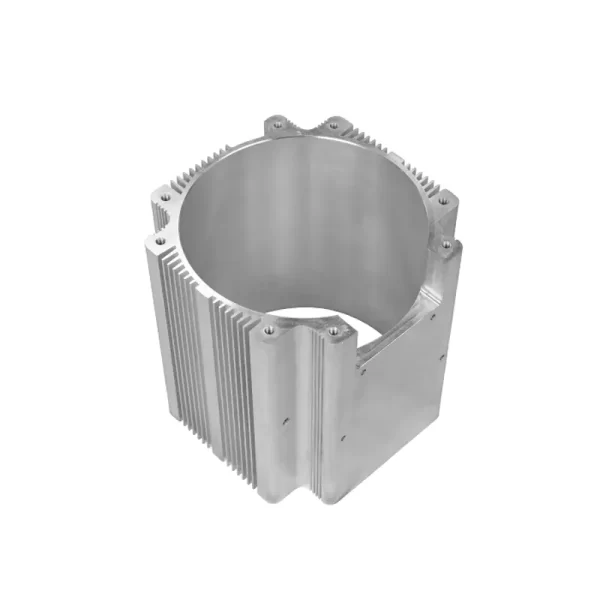

HIQ finned aluminum motor housing profile
HIQ Aluminum transparent product image – 820 x 680 WebP
Aluminum Motor Housing Profile for Automation — profile, machining and finish reviewed as one production system.

Aluminum Motor Housing Profile for Automation: configuration and specification

Component familyAluminum Motor Housing
Typical alloys6000-series aluminum alloys selected for strength, formability, finish and application conditions
ProfileStandard or project-specific section; drawing review determines the final geometry
Secondary operationsCutting, CNC machining, drilling, tapping, bending or assembly preparation where required
Finish optionsMill finish, anodizing or powder coating, subject to part geometry and inspection requirements
Tolerance and order quantityConfirmed from the drawing, critical features and production plan
Quality documentationInspection plan and material or dimensional records agreed during quotation

What the finished component must get right

This housing variant is positioned for compact servo and automation drives where weight, mounting interfaces and a predictable external envelope matter together.

  • Integrated cooling fins and mounting features can reduce secondary assembly work
  • A continuous metal body supports heat transfer away from windings and bearings
  • Machined interfaces help control concentricity, runout and installation fit
  • Material and wall-thickness choices can support weight targets without losing structural continuity

Project considerations for motor housing profile for automation

The motor housing profile for automation requirement should connect the motor stack, end covers and installation points. A clear datum strategy helps keep concentricity, mounting position and thermal interfaces consistent from prototype to repeat production.

  • Motor diameter, stator interface and internal clearance
  • End-bell, bearing and shaft-related datum requirements
  • Cooling-fin layout or water-jacket configuration
  • Mounting feet, lugs, threaded holes and cable access
  • Leak, dimensional, surface and finish acceptance criteria

These points are not a substitute for the approved drawing, but they show the questions that should be resolved before tooling, quotation and inspection are finalized. Where the design is already in production, sharing the current specification, known quality issues and target improvements usually gives the fastest technical review.

How HIQ manufactures motor housing profile for automation

Production planning connects die review, billet selection, extrusion, controlled cooling, straightening, cutting, CNC machining and surface finishing. The route is agreed only after the profile, material condition, critical features and finish have been reviewed together. That front-end work reduces the risk of a technically acceptable extrusion that later fails at machining, assembly or installation.

  1. Drawing and application reviewWe clarify load, fit, thermal or sealing requirements, annual volume and the features that must remain consistent in production.
  2. DFM and tooling routeThe team checks wall sections, extrusion direction, machining access and whether a new die or an existing profile is the better commercial choice.
  3. Extrusion and preparationBillet, extrusion and cooling controls are organized around the selected alloy and profile, followed by straightening and cut planning.
  4. Machining and finishingCritical interfaces are prepared by CNC operations, then anodized or coated where the application requires protection and appearance.
  5. Inspection and packingDimensional checks, surface review and packaging are planned around the customer’s receiving and assembly process.

Applications for motor housing profile for automation

The most common applications include servo and stepper motor bodies, electric vehicle and traction motor assemblies, gear motor housings and industrial drive units, robotics, actuators and automation equipment. We use the operating environment to narrow the material and finish options, and the assembly method to define which dimensions require inspection.

For buyers comparing suppliers, the useful comparison is not only price per kilogram. It is the cost of a component that arrives with the right section, the right machined interfaces, a repeatable finish and a route for handling engineering changes. Those factors shape the total cost of the motor housing profile for automation programme.

Quality control for motor housing profile for automation

Inspection starts with the features that control fit and function. For this product family, the plan can cover critical dimensions, wall thickness, straightness, thread quality, surface condition and fit with adjacent motor components. Exact checks and sampling are confirmed in the quotation package so that both teams work to the same acceptance criteria.

When the project warrants it, the team can review CMM inspection, surface-condition checks, thread inspection, fit trials and material documentation. Final requirements should be stated on the purchase drawing or in the approved inspection plan.

Aluminum Motor Housing Profile for Automation FAQs

Can HIQ customize motor housing profile for automation to our drawing?

Yes. Custom work can include profile development, alloy selection, machining, finishing, assembly preparation and packaging. The drawing and target volume help us identify the most suitable route and tooling investment.

What information should we include in a quotation request?

Provide a 2D drawing or 3D model, material and finish requirements, critical tolerances, annual and first-order quantities, inspection expectations and the destination. Photos of the current component are useful when the application is already in production.

Can you work from an existing aluminum profile?

Often, yes. We can review the section and the finished-part requirements to determine whether a stock or existing die is suitable. If not, we will explain where a new profile is likely to reduce total cost or improve function.

Variant-specific engineering

Motor housing for automation: dynamic mounting and repeatability

This variant is for automation applications where the motor housing is part of a moving axis or a machine module and must retain alignment through vibration, belt tension, brake load or repeated assembly. Mounting geometry and cable routing are central requirements.

The profile should leave stable machined pads for the gearbox or actuator interface and a service path for encoder cables and connectors. Bearing seats and mounting faces should use datums that can be reached in production and checked after finishing.

For repeat builds, consider how the housing appears in the machine assembly: orientation, fastener access, repair sequence and interchangeability. Those requirements may be more important than maximizing a generic fin area.

Inputs to confirm for this variant

  • Moving-axis and vibration load path
  • Gearbox, actuator and machine-mount interfaces
  • Encoder cable and connector routing
  • Bearing alignment and repeat assembly datums
  • Fastener access and field-service replacement

Next step

Review the wider aluminum motor housing range, browse the aluminum profile product hub, or send your drawing to the HIQ engineering team. For material terminology and standards, the Aluminum Association and ASTM International publish useful reference material.
