Extruded Aluminum Motor Housing

Extruded Aluminum Motor Housing is engineered by HIQ Aluminum for electric motors, servo drives, gear motors, robotics and compact industrial machinery. Send a drawing, STEP model or performance target and our team will align the aluminum alloy, profile geometry, machining allowances and surface finish with the way the component will be produced and assembled.

This extruded aluminum motor housing programme is built around one practical question: what does the finished component need to do in service? Rather than quoting a generic section, we review housing geometry, thermal path, mounting interfaces, wall thickness and the relationship between the extruded body and machined end features. That discussion helps identify the critical dimensions, avoid unnecessary secondary operations and set a manufacturing route that can be repeated across the project quantity.

Extruded Aluminum Motor Housing: configuration and specification

What the finished component must get right

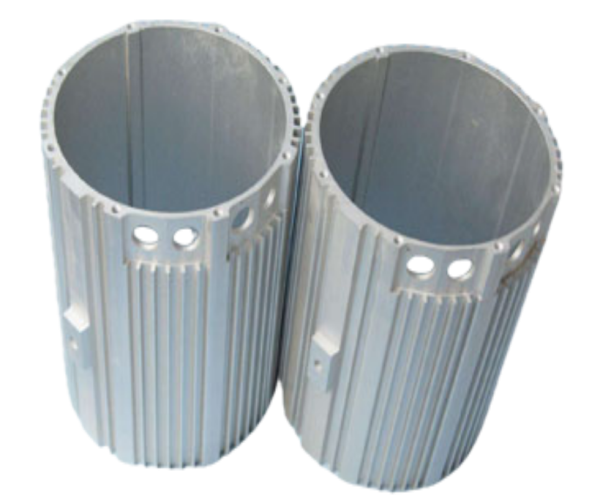

The extruded shell is developed around the motor stack and end-bell interfaces, with machining added where the assembly requires concentric or precisely located features.

• Integrated cooling fins and mounting features can reduce secondary assembly work
• A continuous metal body supports heat transfer away from windings and bearings
• Machined interfaces help control concentricity, runout and installation fit
• Material and wall-thickness choices can support weight targets without losing structural continuity

Project considerations for extruded aluminum motor housing

The extruded aluminum motor housing requirement should connect the motor stack, end covers and installation points. A clear datum strategy helps keep concentricity, mounting position and thermal interfaces consistent from prototype to repeat production.

• Motor diameter, stator interface and internal clearance
• End-bell, bearing and shaft-related datum requirements
• Cooling-fin layout or water-jacket configuration
• Mounting feet, lugs, threaded holes and cable access
• Leak, dimensional, surface and finish acceptance criteria

These points are not a substitute for the approved drawing, but they show the questions that should be resolved before tooling, quotation and inspection are finalized. Where the design is already in production, sharing the current specification, known quality issues and target improvements usually gives the fastest technical review.

How HIQ manufactures extruded aluminum motor housing

Production planning connects die review, billet selection, extrusion, controlled cooling, straightening, cutting, CNC machining and surface finishing. The route is agreed only after the profile, material condition, critical features and finish have been reviewed together. That front-end work reduces the risk of a technically acceptable extrusion that later fails at machining, assembly or installation.

1. Drawing and application reviewWe clarify load, fit, thermal or sealing requirements, annual volume and the features that must remain consistent in production.
2. DFM and tooling routeThe team checks wall sections, extrusion direction, machining access and whether a new die or an existing profile is the better commercial choice.
3. Extrusion and preparationBillet, extrusion and cooling controls are organized around the selected alloy and profile, followed by straightening and cut planning.
4. Machining and finishingCritical interfaces are prepared by CNC operations, then anodized or coated where the application requires protection and appearance.
5. Inspection and packingDimensional checks, surface review and packaging are planned around the customer’s receiving and assembly process.

Applications for extruded aluminum motor housing

The most common applications include servo and stepper motor bodies, electric vehicle and traction motor assemblies, gear motor housings and industrial drive units, robotics, actuators and automation equipment. We use the operating environment to narrow the material and finish options, and the assembly method to define which dimensions require inspection.

For buyers comparing suppliers, the useful comparison is not only price per kilogram. It is the cost of a component that arrives with the right section, the right machined interfaces, a repeatable finish and a route for handling engineering changes. Those factors shape the total cost of the extruded aluminum motor housing programme.

Quality control for extruded aluminum motor housing

Inspection starts with the features that control fit and function. For this product family, the plan can cover critical dimensions, wall thickness, straightness, thread quality, surface condition and fit with adjacent motor components. Exact checks and sampling are confirmed in the quotation package so that both teams work to the same acceptance criteria.

When the project warrants it, the team can review CMM inspection, surface-condition checks, thread inspection, fit trials and material documentation. Final requirements should be stated on the purchase drawing or in the approved inspection plan.

Extruded Aluminum Motor Housing FAQs

Next step

Review the wider aluminum motor housing range, browse the aluminum profile product hub, or send your drawing to the HIQ engineering team. For material terminology and standards, the Aluminum Association and ASTM International publish useful reference material.
